The C4 Model Hierarchy

Generating Layered Views Across System Context, Container, and Component Levels from Natural Language

The C4 model—created by Simon Brown—provides a simple yet powerful way to communicate software architecture at multiple levels of abstraction without forcing teams into overly complex notation or heavyweight enterprise modeling tools. Its four hierarchical levels (Context → Containers → Components → Code) offer zoomable views that are immediately understandable by different stakeholders: executives see the big picture (Context), DevOps teams see deployable units (Containers), developers see internal modular structure (Components), and only the deepest code-level details are shown when needed (usually via UML or code snippets).

In traditional practice, creating a consistent C4 hierarchy requires manual synchronization across diagrams—often leading to drift as the system evolves. Keeping Context, Container, and Component views aligned with each other and with underlying UML models is time-consuming and error-prone.

Visual Paradigm’s AI changes this dramatically. You describe the system once (in natural language, at any level of detail), and the AI generates a complete, consistent C4 model hierarchy—with all levels automatically cross-referenced and traceable. You can start at any level and drill up or down conversationally, letting the AI maintain coherence across abstractions.

How to Generate the Full C4 Hierarchy with AI

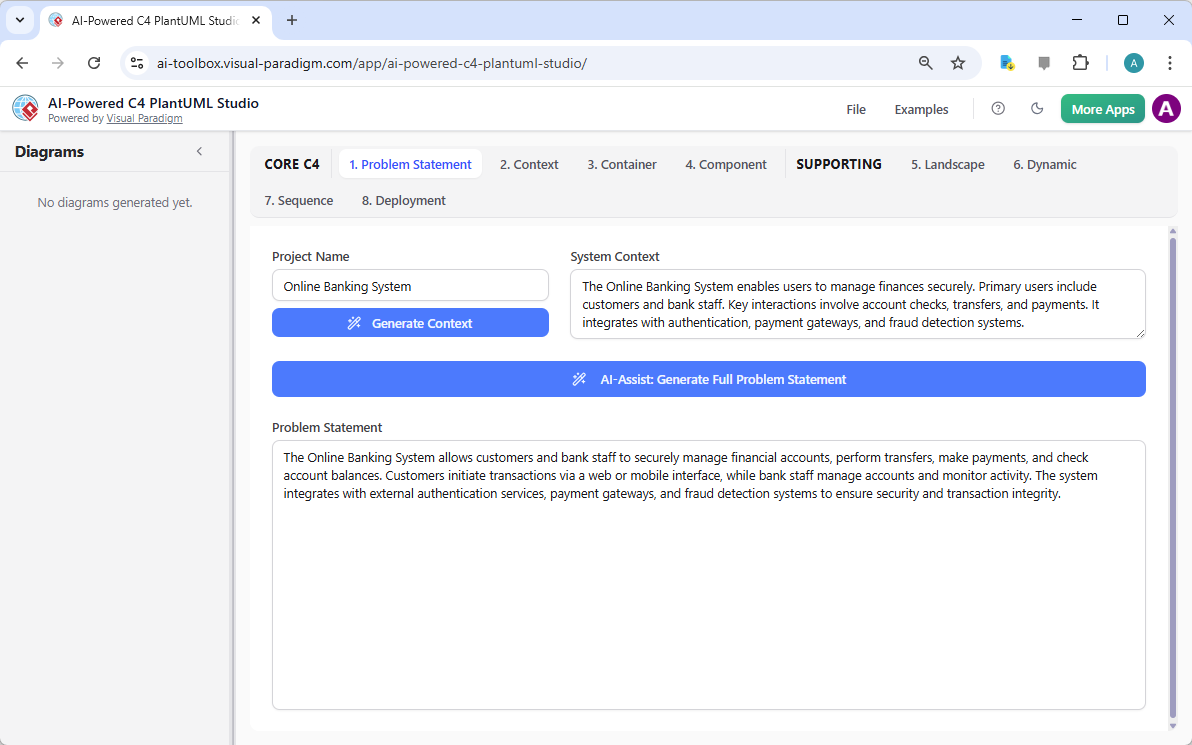

1. Provide a Single, High-Level Description In the AI Chatbot (or via dedicated C4 Generator apps in the Innovation Hub), give a concise system overview or paste relevant prior models:

   • “Generate the complete C4 model hierarchy for a modern online food delivery platform. Include customers, restaurants, delivery drivers, payment providers, and mapping services as external actors/systems. Core system consists of a mobile/web app, API gateway, order service, restaurant service, delivery service, payment service, notification service, PostgreSQL database, Redis cache, and AWS S3 for images.”
   • “Create C4 views for a ride-sharing application like Uber: passengers and drivers use mobile apps, system includes API gateway, ride matching service, payment service, map integration, notification engine, and backend database.”
   • “From my existing UML models (Class, Component, Deployment), generate the corresponding C4 hierarchy: System Context → Containers → Components.”

2. AI Produces the Layered C4 Views The AI delivers three (or four) consistent diagrams in sequence or as navigable layers:

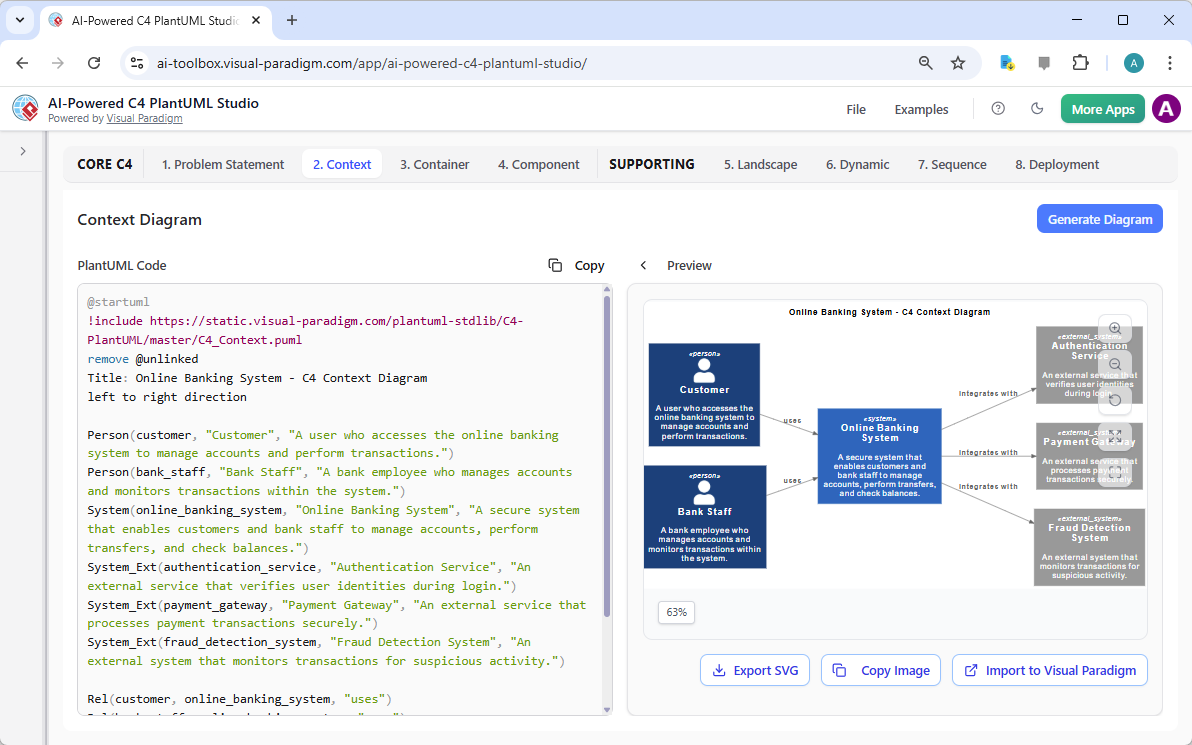

   • Level 1: System Context Diagram
     • One central “Food Delivery System” box
     • External actors (Customer, Restaurant, Driver) and external systems (Payment Gateway, Google Maps API, Push Notification Service)
     • High-level interactions (e.g., “Places Order”, “Accepts Delivery”, “Processes Payment”)
     • Clean, stakeholder-friendly view—no technical detail

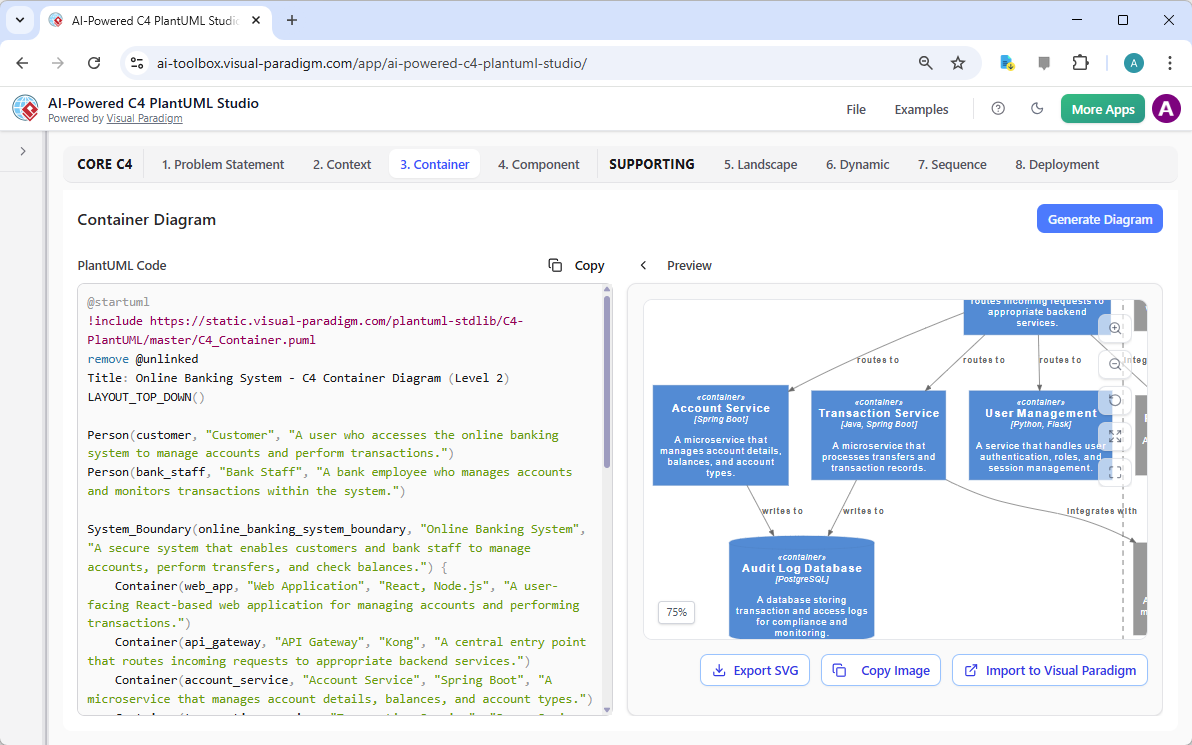

   • Level 2: Container Diagram
     • Zooms into the system box from Level 1
     • Shows major deployable/runnable containers: Mobile App (Android/iOS), Web App (SPA), API Gateway, Order Service (container), Payment Service (serverless), PostgreSQL (database), Redis (cache), S3 (file storage)
     • Communication paths labeled with protocols (HTTPS, gRPC, AMQP)
     • External systems remain as peers
     • Typically includes technology choices (React, Node.js, Java Spring Boot, AWS Lambda, etc.)

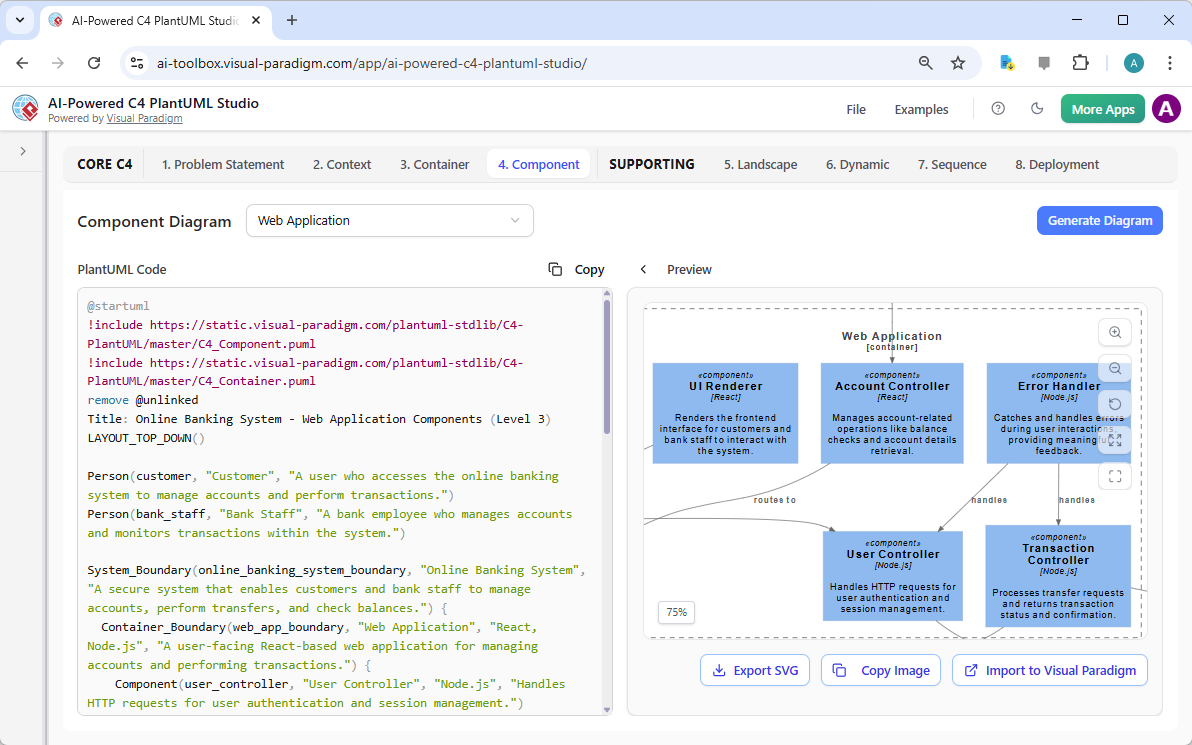

   • Level 3: Component Diagram
     • Zooms into one or more containers (e.g., Order Service container)
     • Reveals internal components/modules (Order Controller, Order Domain Service, Order Repository, Payment Client Adapter, Notification Publisher)
     • Shows provided/required interfaces, ports, and intra-container dependencies
     • Consistent with UML Component Diagram from Module 6, but presented in C4 style (simpler notation, focus on responsibility)
   • Level 4: Code (optional)
     • When requested, shows selected code-level detail: UML Class/Sequence snippets, package structure, or even pseudocode illustrating key interactions

3. Interactive Navigation & Refinement Use natural language to drill, expand, or modify:

   • “Show Level 2 Container view with more detail on the Notification Service.”
   • “Zoom into the Order Service container and show its internal components.”
   • “Update the System Context: add a new external Fraud Detection Service that the Payment Service calls.”
   • “Generate a side-by-side comparison of current vs. proposed microservices split for the Delivery domain.”
   • “Ensure all containers use HTTPS and show TLS termination at the API Gateway.”
   • “Add risk annotations: mark the PostgreSQL container as a single point of failure.”

   Diagram Touch-Up and cross-level synchronization ensure:

   • Changes at one level propagate consistently (e.g., new external system added at Context appears in Container view)
   • Consistent element naming and styling across hierarchy
   • No manual realignment required

Why the C4 Hierarchy Is Transformative (and Why AI Makes It Seamless)

Practical Tips for Effective C4 Generation

• Start broad, then zoom: Begin with System Context, then request Container, then Component.
• Specify technology choices when relevant: “Use AWS services” or “Show Spring Boot microservices.”
• Use C4 terminology in prompts: “Level 1 System Context”, “Level 2 Containers”, “Level 3 Components.”
• Request legends or color-coding: “Color containers by bounded context” or “Highlight external systems in orange.”
• Combine with critique: “After generating the C4 hierarchy, perform an architectural review for scalability and resilience.”

Real-World Payoff

• Executive Briefings — Level 1 Context diagram for board presentations
• Architecture Review Boards — Full hierarchy for technical governance
• Onboarding & Documentation — New team members navigate from big picture to code-level detail
• Microservices Evolution — Quickly visualize proposed splits or consolidations
• Audit & Compliance — Consistent, traceable views across abstractions

The C4 model hierarchy gives every stakeholder—from CTO to junior developer—the right level of abstraction at the right time, all generated from a single source of truth. With AI automating consistency, synchronization, and iterative refinement, you maintain a living, zoomable architectural narrative without the usual maintenance burden.

This capability sets the stage for the next section: using ArchiMate to connect the technical architecture to business motivation, processes, and enterprise strategy—creating true end-to-end alignment.
