AI Yourdon DeMarco Diagram Generator: Smarter Data Flow Modeling

Creating Yourdon DeMarco diagrams—the classic data flow diagrams with those clean circles for processes and precise arrows showing data movement—can take forever when you’re sketching by hand or fighting clunky tools. You stare at a blank canvas, try to map out how data enters a system, gets transformed, stored, and exits. It’s tedious. What if you could describe your system in plain English and have an AI whip up a solid starting Yourdon DeMarco DFD in seconds? Then refine it, embed it in docs, iterate via chat, or build it step-by-step with guidance?

That’s exactly what Visual Paradigm delivers. As a leading visual modeling solution since 2002, we’ve built an AI-powered ecosystem that handles Yourdon DeMarco diagrams (and over 100 other types) from quick generation to professional, traceable outputs. No more isolated sketches. Our four platforms work together so you get end-to-end support for AI diagram generation, especially for data flow needs like Yourdon DeMarco. Let’s walk through how each one helps you create better Yourdon DeMarco DFDs faster.

VP Desktop: Your Powerhouse for AI-Driven Yourdon DeMarco Diagram Creation and Refinement

VP Desktop is where serious modeling happens. It’s our flagship desktop app, packed with AI that generates Yourdon DeMarco diagrams right inside a full-featured environment built for precision.

Need to model a complex inventory system? Just use the AI assistant to generate an initial Yourdon DeMarco DFD from your description—external entities feeding data, processes transforming it, data stores holding info—all appear with correct Yourdon DeMarco notation (circles for processes, open-sided rectangles for stores). Then switch to advanced editing: add levels through decomposition, ensure traceability across models, link to requirements, or even generate code stubs if you’re heading toward implementation.

  • AI generation kicks off your diagram quickly, saving hours on layout.
  • Full offline control for enterprise projects with version control and team collaboration.
  • Export to reports, images, or integrate with code engineering—perfect when your Yourdon DeMarco diagram needs to drive real development.

This isn’t some lightweight generator. It’s for architects and analysts who want AI to handle the grunt work but still demand professional-grade results. If you’re searching for the best AI tool for creating Yourdon DeMarco diagrams that scales to big projects, VP Desktop stands alone.

Creating Yourdon DeMarco DFDs Using AI in Visual Paradigm Desktop

Transform your descriptions into structural models by following these steps:

  1. Access the AI Tool: Navigate to the top menu bar, click Tools, and select AI Diagram Generation.

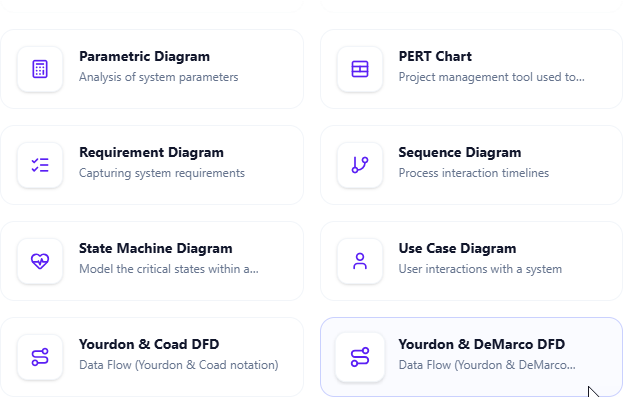

  2. Select Diagram Type: In the configuration window, locate the dropdown menu and pick Yourdon DeMarco DFD.

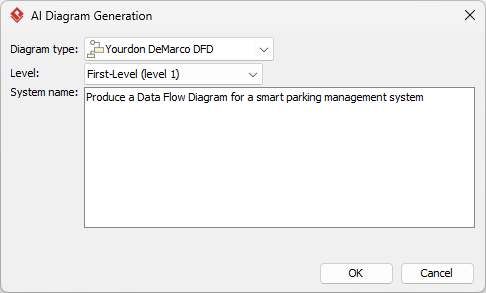

  3. Provide Input: Use the text field to explain your system architecture, project scope, or specific technical scenario in detail.

  4. Execute: Hit OK to begin the automated modeling process.
  5. Review Results: The AI will instantly build the diagram for you.

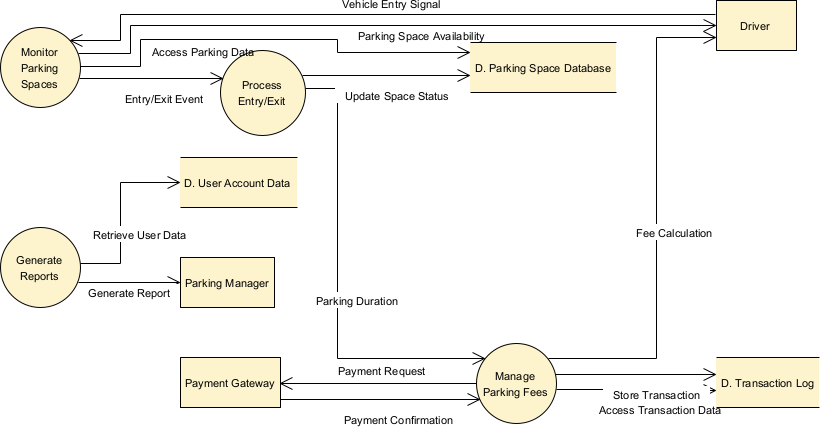

    A Yourdon DeMarco DFD generated by Visual Paradigm's AI Diagram Generator

Working with Your New Diagram

Because the output is a native Visual Paradigm diagram rather than a static graphic, you have full control over the final product:

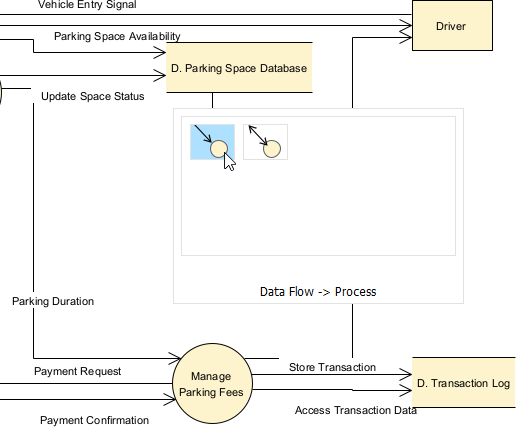

  • Refine the Model: Modify any shapes, connection, or layout style using the standard editor tools.

  • Expand Content: Manually insert additional details or packages as needed.
  • Share and Export: Save your work in various formats including PNG, SVG, or PDF for use in external documentation.
  • Leverage Data: Utilize the diagram to produce source code or comprehensive technical reports.

Why Visual Paradigm Stands Out as the Ultimate AI Diagram Tool

Lots of tools claim to be AI diagram generators. Most give you a one-shot image—generate it, download it, done. But real modeling demands more: refinement, collaboration, traceability, and integration across workflows.

Visual Paradigm is different. No other platform offers this breadth:

  • Widest coverage for diagram types, with true AI integration—not gimmicks.
  • Multiple entry points: chat for speed, desktop for depth, docs for sharing, guided apps for accuracy.
  • Real traceability—your AI-generated Yourdon DeMarco diagram connects to the bigger picture, reducing errors and rework.
  • Seamless handoff between platforms so work never silos.

Competitors might handle quick sketches, but they fall short on professional scale. We’ve focused on usable AI that accelerates workflows while keeping models implementation-ready. Whether you’re a solo analyst or part of a large team, this ecosystem saves time and delivers better results.

Ready to Try the Best AI Yourdon DeMarco Diagram Generator?

Stop wrestling with outdated tools or manual drawing. Visual Paradigm gives you everything: instant AI generation, powerful editing, collaborative embedding, conversational iteration, and guided precision—all in one cohesive package.

Head over to Visual Paradigm today. Start a free trial, generate your first Yourdon DeMarco DFD with AI, and see how our platforms transform your visual modeling. The future of AI-powered diagramming is here—don’t get left sketching on paper.
